Liberty Docking Station Guide
The Liberty Docking Station manages the inputs from both the ELMO document camera and a connected laptop. Here's how it works:
Input Selection
-

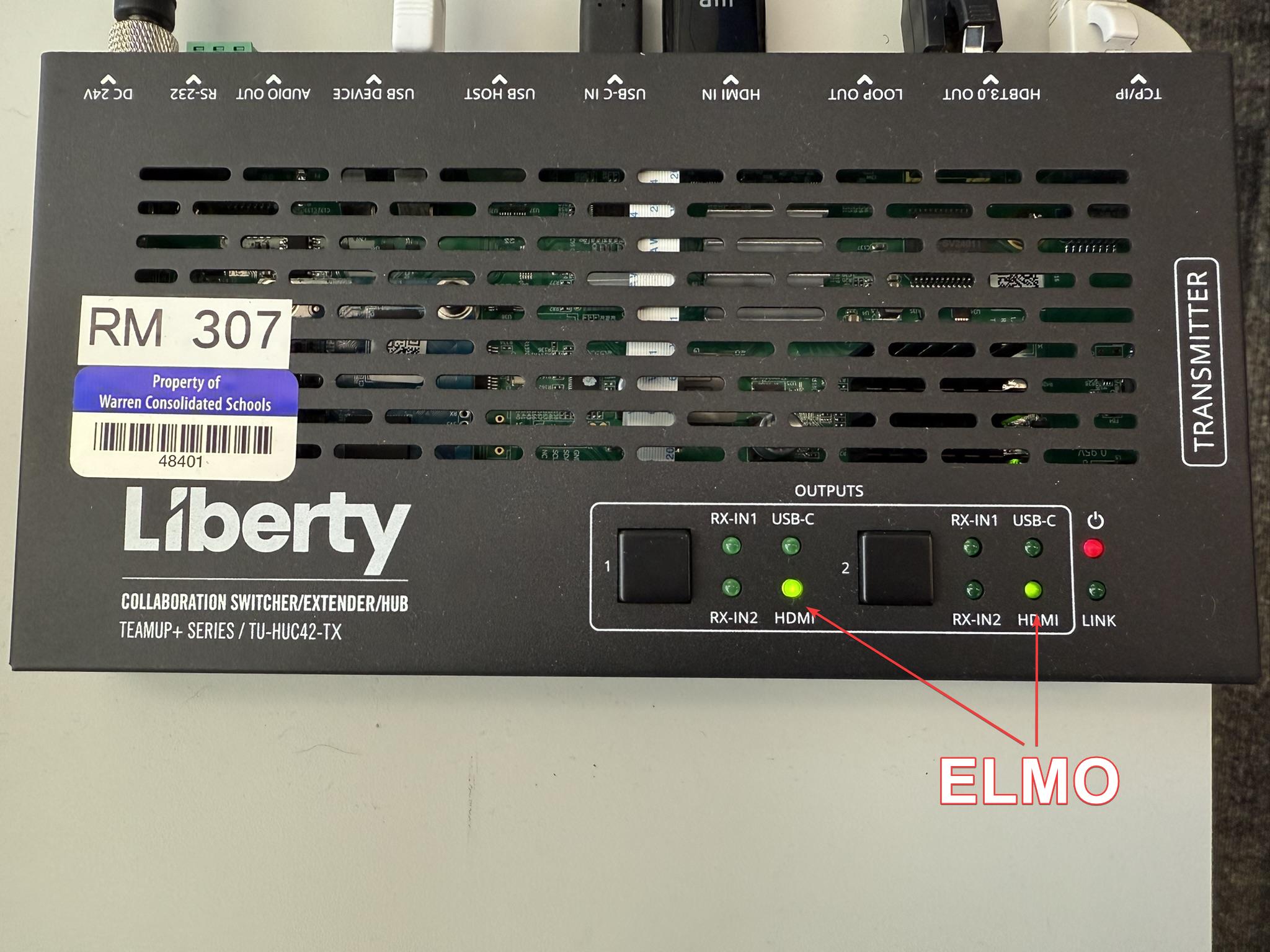

The docking station has two input options:
- USB-C input for the laptop.
- HDMI input for the ELMO.
UNPLUG THE WHITE USB CABLE FROM THE DOCUMENT CAMERA IF YOU DO NOT USE IMAGEMATE
-
Button 1 and Button 2 on the docking station allow you to switch between these inputs.
How to Switch Between Inputs:
-
To display the laptop:
- Press Button 1 or Button 2 until the USB-C indicator light is on.
- When the light is on the USB-C indicator, the docking station will display the laptop's output.
-
To display the ELMO:
- Press Button 1 or Button 2 until the HDMI indicator light is on.
- When the light is on the HDMI indicator, the docking station will display the ELMO's output.
ELMO Operation Guide
1. Power
-
Power ON

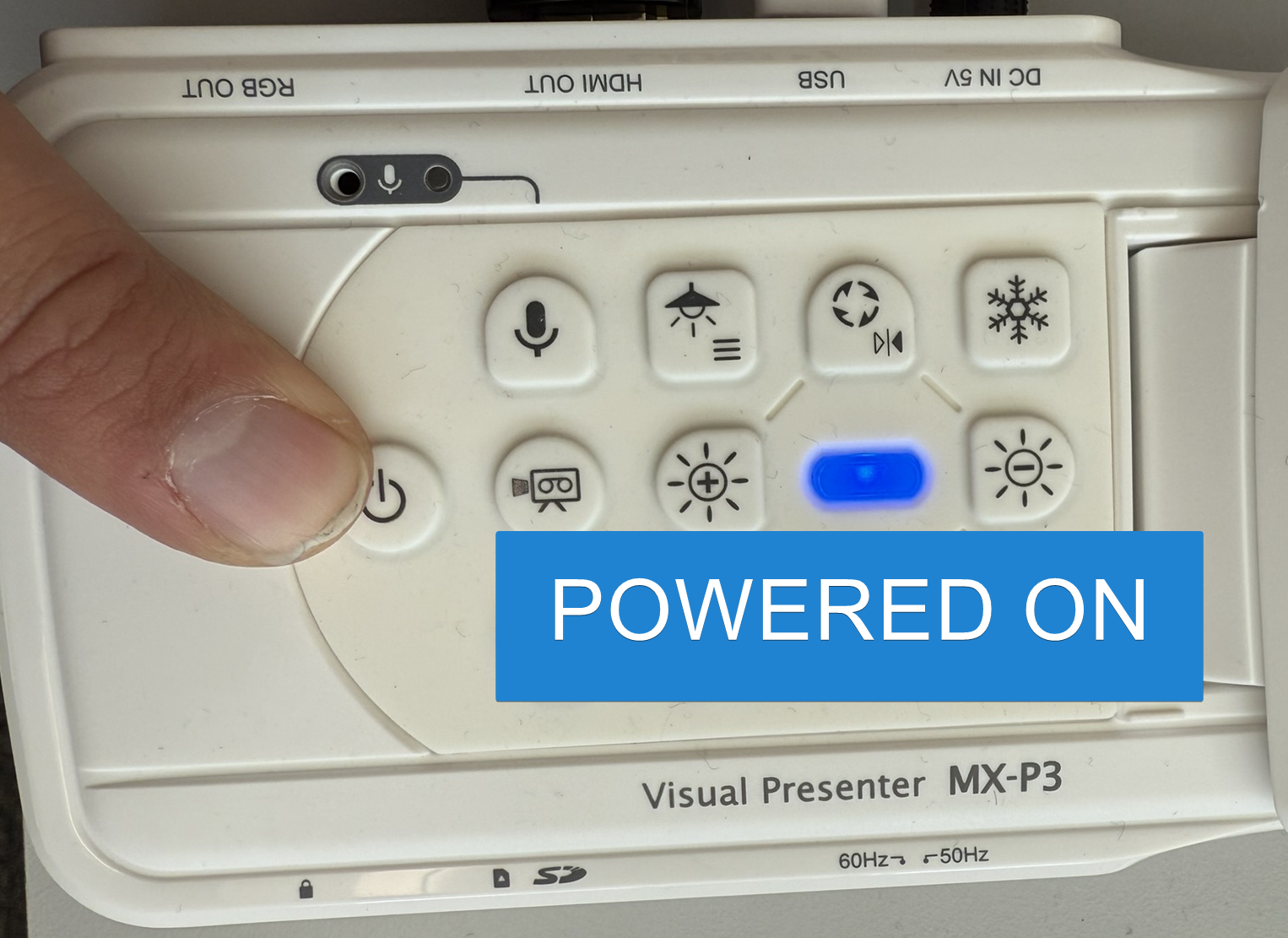

The Elmo camera is already plugged in when you enter the room. Simply press the Power button to turn it on. The LED turns blue or green, and the camera starts outputting images to the connected display. -
Power OFF

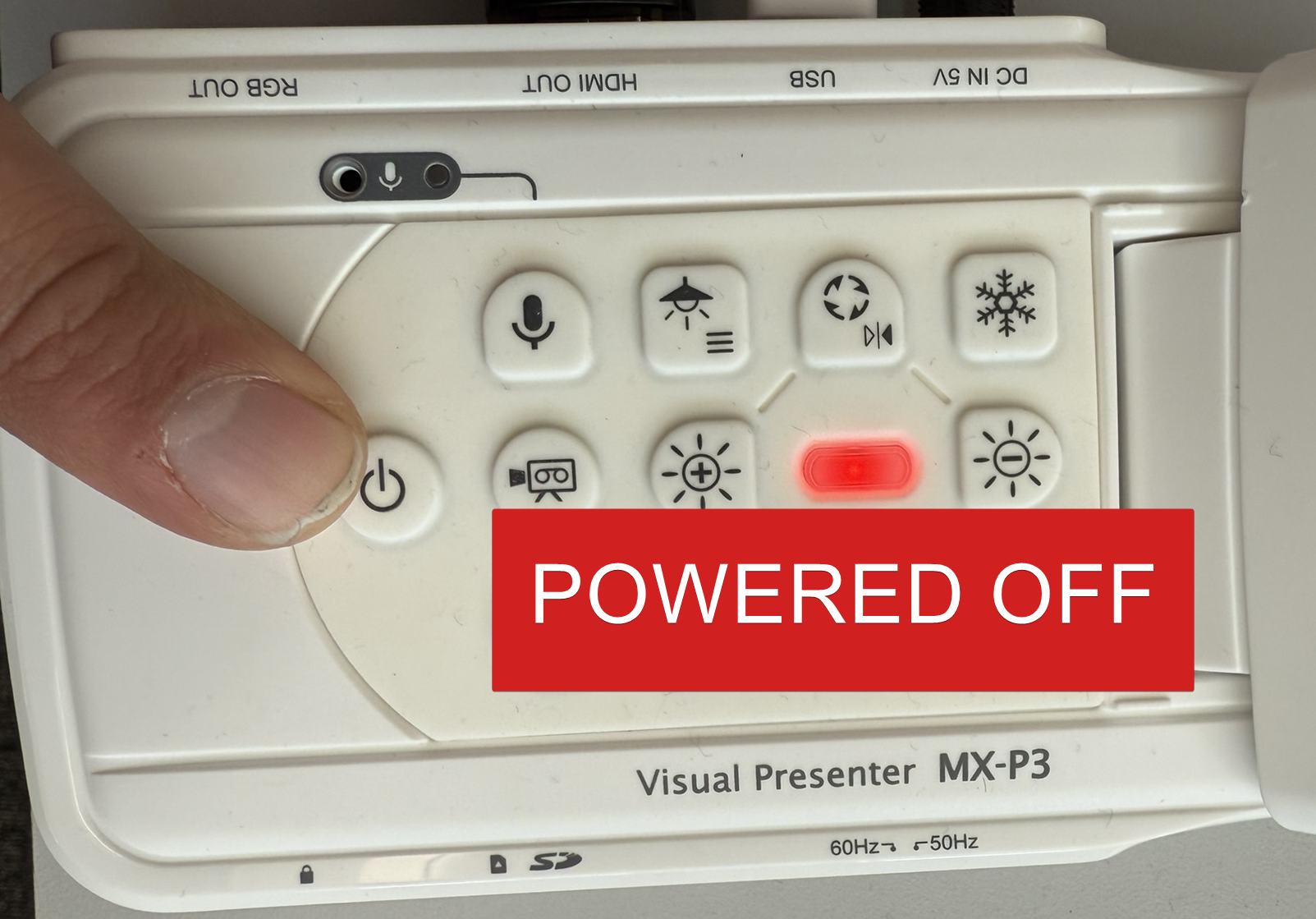

Press the Power button again to turn off the camera. The LED will turn red, and the camera enters standby mode.
2. Zoom
-
Zoom-IN: Press to enlarge the image.
-
Zoom-OUT: Press to shrink the image.
3. Auto Focus (One-Push AF)
-
AF: Press this button to automatically focus the camera.
4. Brightness Adjustment
-
Brightness +: Press to brighten the image.
-
Brightness -: Press to darken the image.
-
Initialization of Brightness: Press Brightness + and Brightness - together to reset brightness to default.
+
5. Lighting / OSD Menu
-
Press this button to turn on/off the LED lighting.
-
Long press to access the OSD (On-Screen Display) menu.
6. Image Rotation / Mirror Inversion
-
Press the button to rotate the image by 0° or 180°.
-
Hold for 3 seconds to flip the image horizontally.
7. Freeze
-
Press the button to pause or restart the image display.
